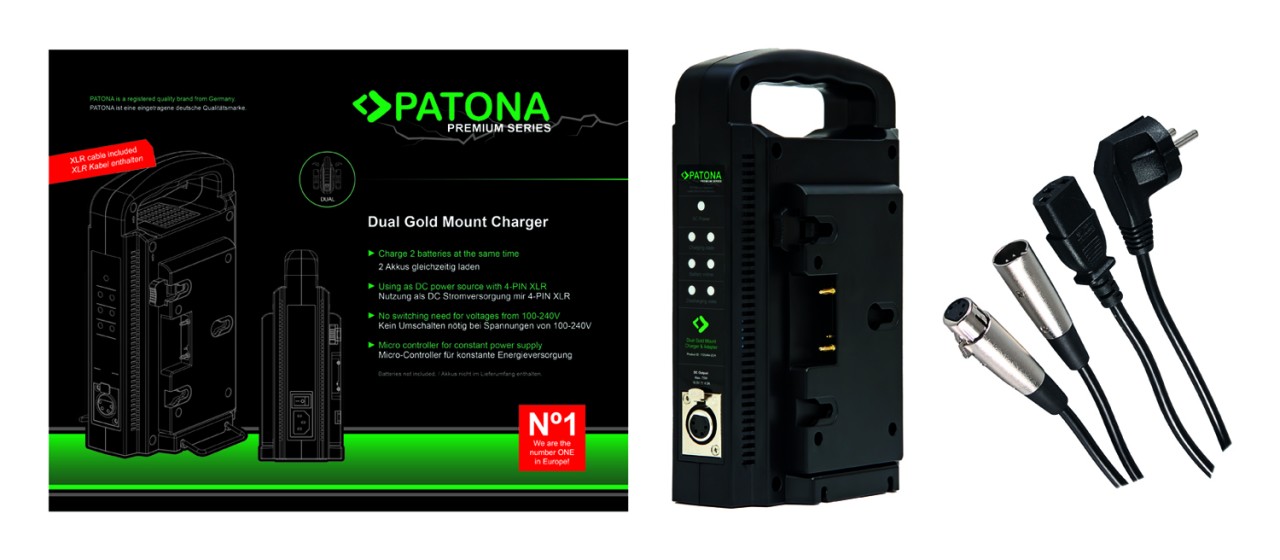

PATONA Premium Gold Mount Dual Charger for Panasonic AN-190W BL-BP150 BP-150S with 4-Pin XLR Cable
With the PATONA Dual Gold Mount Charger for Panasonic, two batteries can be charged quickly, simultaneously and independently of each other. It does not matter whether the two batteries have the same capacity.The charger also has a DC XLR output for charging and operating compatible third-party devices (camcorders, cameras). When the XLR output is used, no batteries can be charged at the same time as the Gold Mount connectors. The charger can also be used as a backup power supply without AC mains connection. The XLR connector can be used to power a third party device when charged batteries are inserted.
The integrated, microcontroller-controlled charging technology automatically detects the required voltage of the inserted battery and prevents overcharging or overheating. The charger has a wing stand to maintain a compact design while still ensuring a safe stand.
The Gold Mount system used for the batteries is a standard that will probably be used in more and more cameras and camcorders in the next few years. This charger is compatible with all batteries based on the Gold Mount system.
Wichtige Informationen wie z.B. Verbundener AC Netzanschluss, eingelegte Akkus und laden oder entladen von verbundenen Batterien wird mithilfe von mehrfarbigen LEDs angezeigt.
Technical data:
- Input: AC 100V-240V 50/60Hz 2A (max)
- Output: DC 16,5V / 4,5A max 75W (4 pin XLR connector)
- Output: Gold Mount connector 16,8V / 3A x1 | 16,8V /2A x2
- Scope of delivery: 1x Dual Gold Mount charger | 1x power cable | 1x 3m 4 Pin XLR cable | 1x QR-code for instructions
Suitable for the following camera types:
AJA CION
Camera Body
Anton Bauer
Video Camera Battery
ARRI
Alexa Minicamera
Blackmagic
Design URSA camera
Canon
EOS C100/C300/C500
Cine Alta Cameras
Ursa, Ursa mini
Gold Mount
Dionic Series
JVC
GY HM850E, HM890E, GY-HM850E, GY-HM890E
Panasonic
AG HPX393, HPX600MC, AG-HPX393, AG-HPX600MC
Sony
PMW-EX3, Sony F5 F55
Suitable for the following battery models:
JVC AN-190W, BL-BP150, BP-150S, BP-150W, BP-90W
Panasonic AN-190W, BL-BP150, BP-150S, BP-150W, BP-90W
Dionic 90, 160
The pictures are examples, the delivered item may differ. Offered is a product of the quality brand PATONA.
