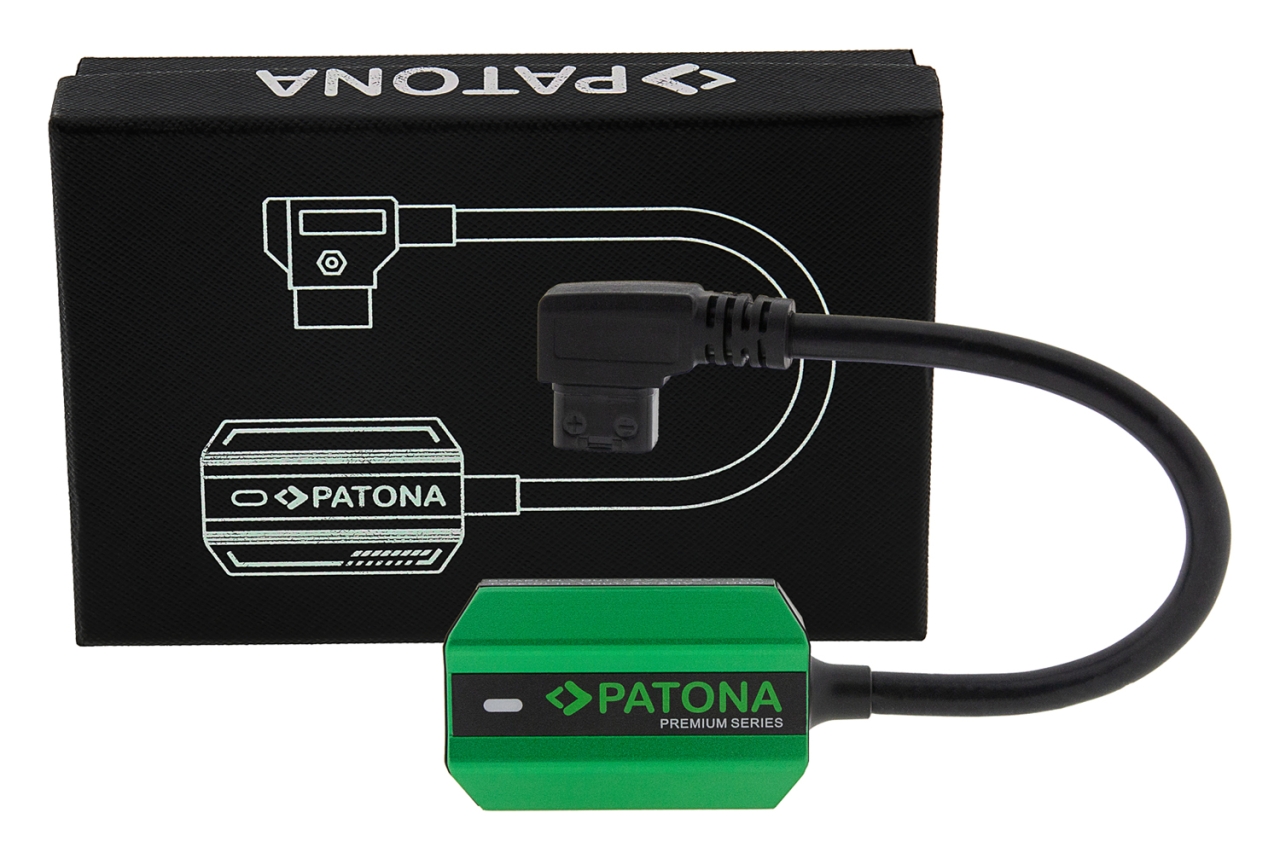

The PATONA PD100W is an adapter from D-Tap to USB-C. As a special highlight: the power supply works in both directions, i.e. the battery can supply and receive power with this adapter. Due to its size and weight, it is smaller and lighter than a conventional charger.
Application options:Â Â
1.) The battery supplies power: The device to be charged is connected to the adapter via the USB-C port, the D-Tap plug of the adapter is connected to the D-Tap output of the battery.
2.) The battery receives power: A USB power adapter is connected to the USB-C output, the D-Tap plug of the adapter is connected to the D-Tap output of the battery. The battery is now charged.Â
Technical data:
- Bi-directional transfer from D-Tap to USB-C
- Maximum power transmission: 100W
- D-Tap output / input: 12V – 16.8V, 10A
- USB-C output / input: 3V – 20V, 5A
- Intelligent recognition of charging protocols
- supported charging protocols: FCP, AFC, SCP, DRP, Try SRC, PD3.0, QC2 / QC3.0 / QC3.0+
- Automatic adjustment of the output voltage
- Protection against over/under voltage, short circuit and overload of the battery
- With silicone heat protection bumper
- Stand-by current consumption: 0.18mA
- LED indicator light (blue light during operation, no light when not connected)
- Material: aluminum alloy, plastic
- Dimensions: 250 x 35 x 17mm (L x W x H)
- Weight: 66gr
- Brand: PATONA Premium
Compatibilities:
- compatible with Samsung SFC/AFC and PPS as well as QC, PD and Huawei SCP
Examples of charging times:*Â
- 95Wh Li-ion battery: 50 minutes; 80 % charging capacity
- 145Wh Li-ion battery: 75 minutes; 80 % charging capacity
- 284Wh Li-ion battery: 215 minutes; 80 % charging capacity
*data without guarantee
Important notes:
- This product may not be offered for sale on Amazon.
