Synchron USB Charger 18650 Zelle ICR18650-26F INR18650F1L NCR18650B US18650VTC5 US18650VTC6L

PATONA Synchron USB Charger f. 18650 Zelle ICR18650-26F INR18650F1L NCR18650B US18650VTC5 US18650VTC6L

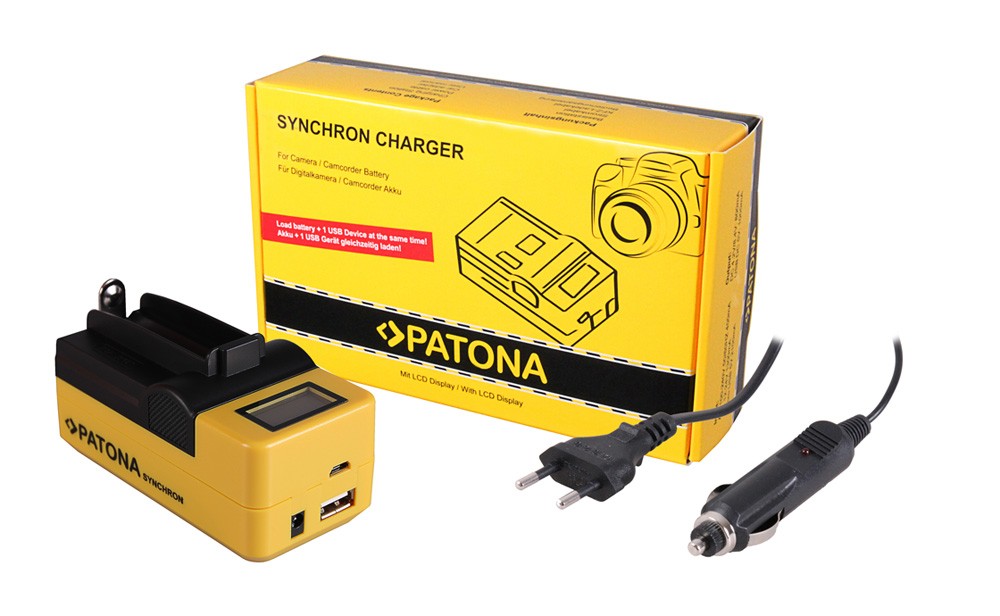

The exclusive PATONA Synchron USB Charger f. 18650 Cell is capable to charge a battery and another device over the USB-Output at the same time.
The LCD Display shows the current charge level of the battery. It doesn’t matter if it is connected to a power source or not.
It is possible to use a 100-240V wall socket, 12-24V Car charger or 5V Micro-USB to power the device.
The build in Microchip protects the battery from damage due to overheating and overload.

Compatible to following batteries:
18650 Cell

Compatible model number:
18650, ICR18650-26F, INR18650F1L, NCR18650B, US18650VTC5, US18650VTC6

Technical Data:
Input:
AC 100V-240V 50/60Hz400mA (max)
DC 12-24V 1300mA (min)
Micro USB 5V 1000mA

Output:
DC 4,2V / 8,4V 800mA
USB Output: DC 5V 1000mA

Attention: As a safety measure the USB-Output will automatically deactivated if Micro-USB is used as input to power the device.

Safety instructions:
– Put the plate on the 4.2V charger basis. Do not use the charger base with 8.4 V!. Place the 18650 battery in the battery compartment according to the seat marker (+/-).
– Please use the plate only in its intended manner. Any other use may lead to damage to the product or around the product.

Pictures are only for illustration purposes! Delivery may vary.
