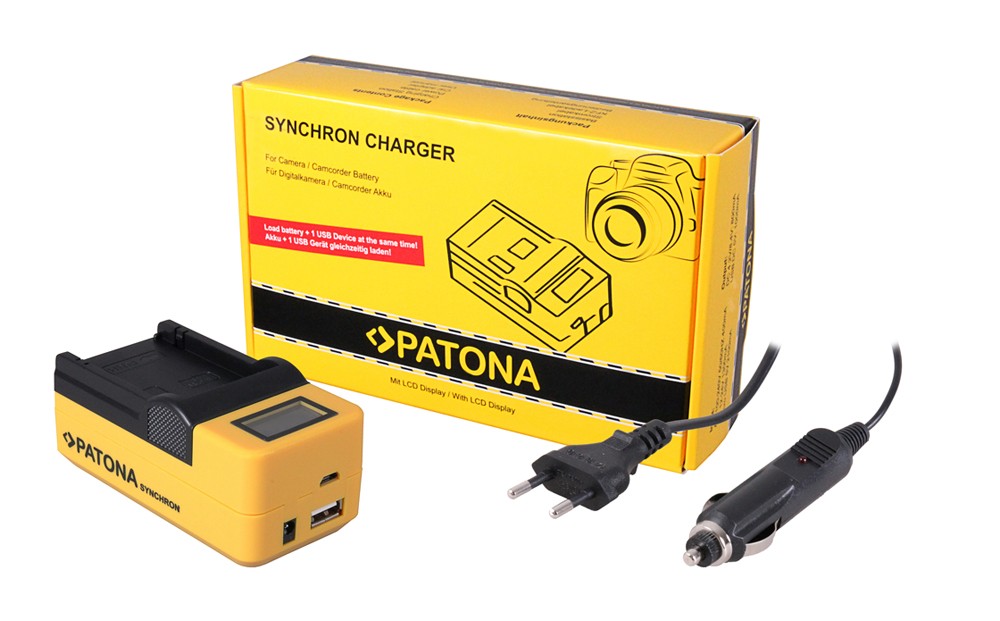

PATONA Synchron USB Charger f. Samsung P120A P180A P90A with LCD
The exclusive PATONA Synchron USB Charger f. Samsung P120A P180A P90A is capable to charge a battery and another device over the USB-Output at the same time.
The LCD Display shows the current charge level of the battery. It doesnt matter if it is connected to a power source or not.
It is possible to use a 100-240V wall socket, 12-24V Car charger or 5V Micro-USB to power the device.
The build in Microchip protects the battery from damage due to overheating and overload.
Compatible to following batteries:
Samsung P120A, P180A, P90A
Compatible model number:
Samsung
SC SC105L, SC-105L, SCM105, SC-M105, SCM105S, SC-M105S, SCM110, SC-M110, SCM110S, SC-M110S
VM VMM10, VM-M10, VMM102, VM-M102, VMM110, VM-M110
VP VPM102, VP-M102, VPM102B, VP-M102B, VPM102S, VP-M102S
Technical Data:
Input:
AC 100V-240V 50/60Hz400mA (max)
DC 12-24V 1300mA (min)
Micro USB 5V 1000mA
Output:
DC 4,2V / 8,4V 800mA
USB Output: DC 5V 1000mA
Attention: As a safety measure the USB-Output will automatically deactivated if Micro-USB is used as input to power the device.
Pictures are only for illustration purposes! Delivery may vary.
